1.5 mm 3 Phase Electrical Stranded Copper Cable 600/1000 V, PVC Insulated | Riyadh Cables

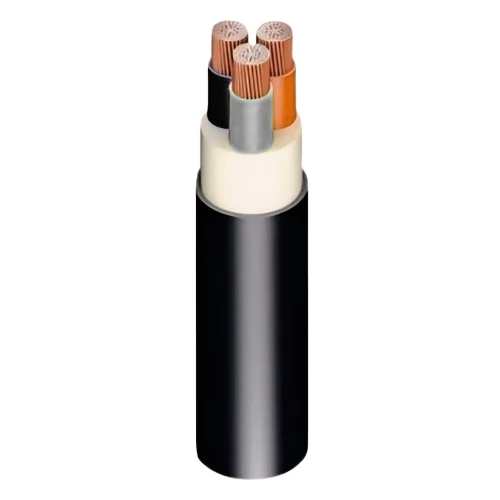

Three core electrical stranded copper cable (CU/PVC/PVC), Insulated with two layers of high-quality PVC, the first layer provides excellent electrical insulation, Size 1.5×3 mm2, produced by Riyadh Cables Company.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer jacket : PVC
• Voltage : 600/1000 volts
• Wire Type: Round Stranded
• Number of Cores: 3 Core
• Size (cross-sectional area) : 1.5 mm2
• Number of wires : 7
• Approx conductor diameter : 1.56 mm
• Thickness of  first insulation layer : 0.8 mm
• Thickness of outer jacket layer : 1.8 mm
• Approx overall diameter : 13 mm
• Weight : 225 kg/km
• Length : 1000 meters
• Phase Core Color: Brown, Black, Gray
• Conformity According to International Standard: IEC 60502-1
