0.75sq mm 3 Core Cable 300/500 Voltage Rating, Flexible Copper Conductor, PVC Insulated | Alfanar

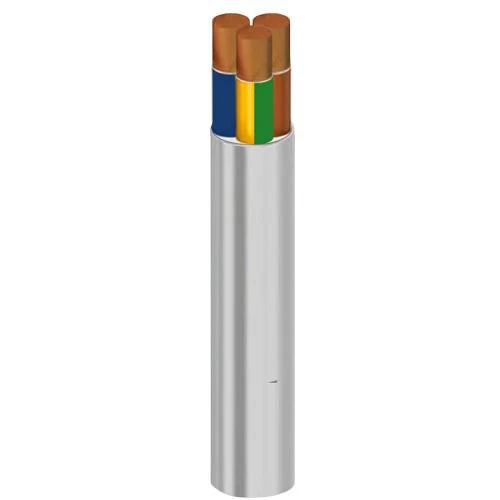

Flexible electrical copper cable three core (CU/PVC/PVC), 0.75 mm2 cross-sectional area, low voltage 300/500V, insulation color (brown, blue, yellow/green), designed for use with mobile electrical units, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-F)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 0.75 mm2
• Number of Wires: 24
• Wire Diameter: 0.2 mm
• Nominal Insulation Thickness: 0.6 mm
• Nominal Sheath Thickness: 0.8 mm
• Overall Diameter: 6.7 mm
• Weight: 70 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Brown, Blue, Yellow/Green)
• Standard: BS EN 50525-2-11
