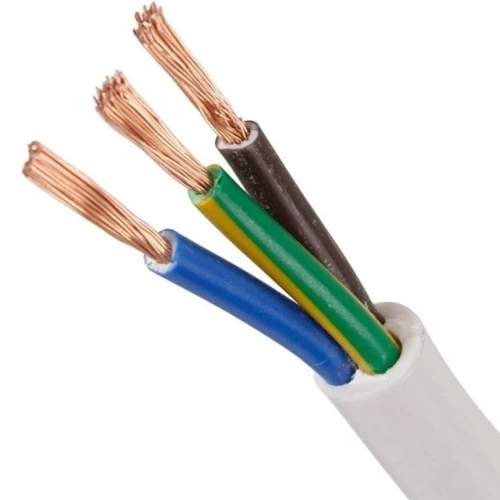

0.75mm 3 Core Cable, 300/500volts, Flexible Copper Wire, PVC Insulation | Nohascom

Flexible copper electrical cable (CU/PVC/PVC), 3 core, 0.75mm2 cross-sectional area, low voltage 300/500V, It transfers energy efficiently to ensure excellent electrical conductivity, and conforms to international specifications, from Nohascom Company, brown, blue, yellow/green color.

• Conductor: Copper
• Conductor Shape: Flexible Copper Conductor (Class 5) as Per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 0.75 mm2
• Number of Wires: 26
• Wire Diameter: 0.2 mm
• Nominal Insulation Thickness: 0.6 mm
• Nominal Sheath Thickness: 0.8 mm
• Overall Diameter: 6.7 mm
• Weight: 65 kg/km
• Insulation Color: (brown, blue, yellow/green)
